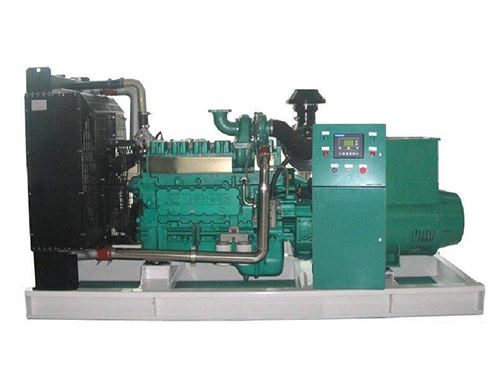

| ??? 廣西玉柴發動機是采用德國 FEV 技術所開發的產品。機體、氣缸蓋采用合金鑄鐵，強化程度高，采用整體鍛鋼曲軸，滑動軸承，體積小重量輕，可靠性高；大修期大于 18000 小時。該機組具有結構緊湊、功率儲備大、可靠性高、調速性能好等特點。 |
| 玉柴柴油發電機組主要參數 |
| 機組型號 | 輸出功率 | 電流 | 柴油機型號 | 缸數 | 缸徑 | 行程 | 排氣量（L） | 燃油消耗率 g/kw.h | 機組尺寸mm L×W×H | 機組重量 kg |
| KW | KVA | (A) | (mm) | (mm) |
| SDDL-Y18 | 18 | 22.5 | 32.4 | YC2108D | 2 | 108 | 120 | 2.20? | ≤225 | 1700*700*1000 | 650 |
| SDDL-Y24 | 24 | 30 | 43.2 | YC2115D | 2 | 115 | 120 | 2.49? | ≤220 | 1700*700*1000 | 650 |
| SDDL-Y30 | 30 | 37.5 | 54 | YC2115ZD | 2 | 108 | 115 | 2.11? | ≤205 | 1700*750*1000 | 900 |
| SDDL-Y40 | 40 | 50 | 72 | YC4D60-D21 | 4 | 108 | 115 | 4.21? | ≤205 | 1800*750*1200 | 920 |
| SDDL-Y50 | 50 | 62.5 | 90 | YC4D85Z-D20 | 4 | 108 | 115 | 4.21? | ≤200 | 1800*750*1200 | 950 |
| SDDL-Y60 | 60 | 75 | 108 | YC4D90Z-D20 | 4 | 108 | 115 | 4.21? | ≤200 | 2000*800*1250 | 1100 |
| SDDL-Y64 | 64 | 80 | 115.2 | YC4A100Z-D20 | 4 | 108 | 125 | 4.58? | ≤200 | 2250*800*1300 | 1200 |
| SDDL-Y90 | 90 | 112.5 | 162 | YC6B135Z-D20 | 6 | 108 | 125 | 6.87? | ≤202 | 2250*800*1300 | 1300 |
| SDDL-Y100 | 100 | 125 | 180 | YC6B155L-D21 | 6 | 108 | 125 | 6.87? | ≤200 | 2300*800*1300 | 1500 |
| SDDL-Y120 | 120 | 150 | 216 | YC6B180L-D20 | 6 | 108 | 132 | 7.26? | ≤192 | 2300*830*1300 | 1600 |
| SDDL-Y132 | 132 | 165 | 237.6 | YC6A200L-D20 | 6 | 108 | 132 | 7.26? | ≤195 | 2300*830*1300 | 1700 |
| SDDL-Y150 | 150 | 187.5 | 270 | YC6A230L-D20 | 6 | 108 | 132 | 7.26? | ≤192 | 2400*970*1500 | 2100 |
| SDDL-Y160 | 160 | 200 | 288 | YC6G245L-D20 | 6 | 112 | 132 | 7.80? | ≤195 | 2500*970*1500 | 2300 |
| SDDL-Y200 | 200 | 250 | 360 | YC6M350L-D20 | 6 | 120 | 145 | 9.84? | ≤197 | 3100*1050*1750 | 2750 |
| SDDL-Y250 | 250 | 312.5 | 450 | YC6MK420L-D20 | 6 | 123 | 145 | 10.34? | ≤195 | 3200*1150*1750 | 3000 |
| SDDL-Y280 | 280 | 350 | 504 | YC6MK420L-D20 | 6 | 123 | 145 | 10.34? | ≤195 | 3200*1150*1750 | 3000 |
| SDDL-Y300 | 300 | 375 | 540 | YC6MJ480L-D20 | 6 | 131 | 145 | 11.73? | ≤197 | 3200*1200*1750 | 3100 |
| SDDL-Y320 | 320 | 400 | 576 | YC6MJ480L-D20 | 6 | 131 | 145 | 11.73? | ≤195 | 3200*1200*1750 | 3100 |
| SDDL-Y350 | 350 | 437.5 | 630 | YC6T550L-D21 | 6 | 145 | 165 | 16.35? | ≤195 | 3300*1250*1850 | 3500 |
| SDDL-Y440 | 400 | 500 | 720 | YC6T600L-D22 | 6 | 145 | 165 | 16.35? | ≤195 | 3400*1500*1970 | 3900 |
| SDDL-Y440 | 440 | 550 | 792 | YC6T660L-D20 | 6 | 145 | 165 | 16.35? | ≤195 | 3500*1500*1970 | 4000 |
| SDDL-Y460 | 460 | 575 | 828 | YC6T700L-D20 | 6 | 145 | 165 | 16.35? | ≤195 | 3500*1500*1950 | 4000 |
| SDDL-Y500 | 500 | 625 | 900 | YC6TD780L-D20 | 6 | 145 | 165 | 16.35? | ≤195 | 3600*1600*1950 | 4100 |
| SDDL-Y550 | 550 | 687.5 | 990 | YC6TD840L-D20 | 6 | 200 | 210 | 39.58? | ≤195 | 3650*1600*2000? | 4200 |
| SDDL-Y650 | 650 | 812.5 | 1170 | YC6C1020L-D20 | 6 | 200 | 210 | 39.58? | ≤195 | 4000*1500*2100? | 5500 |
| SDDL-Y700 | 700 | 875 | 1260 | YC6C1070L-D20 | 6 | 200 | 210 | 39.58? | ≤195 | 4200*1650*2100 | 5800 |
| SDDL-Y800 | 800 | 1000 | 1440 | YC6C1220L-D20 | 6 | 200 | 210 | 39.58? | ≤195 | 4300*1750*2200 | 6100 |
| SDDL-Y880 | 880 | 1100 | 1584 | YC6C1320L-D20 | 6 | 200 | 210 | 39.58? | ≤195 | 5200*2150*2500 | 7500 |
| SDDL-Y1000 | 1000 | 1250 | 1800 | YC12VC1680L-D20 | 12 | 200 | 210 | 79.17? | ≤195 | 5000*2000*2500 | 9800 |
| SDDL-Y1100 | 1100 | 1375 | 1980 | YC12VC1680L-D20 | 12 | 200 | 210 | 79.17? | ≤195 | 5100*2080*2500 | 9900 |
| SDDL-Y1200 | 1200 | 1500 | 2160 | YC12VC2070L-D20 | 12 | 200 | 210 | 79.17? | ≤195 | 5300*2080*2500 | 10000 |
| SDDL-Y1320 | 1320 | 1650 | 2376 | YC12VC2070L-D20 | 12 | 200 | 210 | 79.17? | ≤195 | 5500*2180*2550 | 11000 |
| SDDL-Y1500 | 1500 | 1875 | 2700 | YC12VC2270L-D20 | 12 | 200 | 210 | 79.17? | ≤195 | 5600*2280*2600 | 12000 |
| SDDL-Y1600 | 1600 | 2000 | 2880 | YC12VC2510L-D20 | 12 | 200 | 210 | 79.17? | ≤195 | 5600*2280*2600 | 12500 |
| 1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為3相4線。60HZ發電機組可以根據客戶的特殊需要定制。 | |
| 2.發電機組可以根據客戶需要，選用無錫斯坦福、上海馬拉松、江蘇愛爾瑪、無錫威克等。 | |
| 3.本參數表僅供參考，如有更改恕不另行通知。 | |
